Variables without explicit clock domain annotation can now be inferred from their context. For example, when a variable is assigned from a signal with a known clock domain, the variable's domain is automatically inferred.

module ModuleA (
    i_clk_a: input  'a clock,
    i_rst_a: input  'a reset,
    i_dat_a: input  'a logic,
    o_dat_a: output 'a logic,
) {
    var x: logic;
    assign x = i_dat_a;   // x is inferred as 'a domain
    assign o_dat_a = x;
}

Support global function #2366

Functions can now be defined at the project root (outside of module, interface, and package). Global functions support generic type parameters and public visibility via pub.

pub function add::<W: u32> (
    a: input logic<W>,
    b: input logic<W>,
) -> logic<W> {
    return a + b;
}

module ModuleA #(
    param WIDTH: u32 = 8,
) (
    i_a: input  logic<WIDTH>,
    i_b: input  logic<WIDTH>,
    o_c: output logic<WIDTH>,
) {
    assign o_c = add::<WIDTH>(i_a, i_b);
}

Allow to specify multiple modports as default modport target #2306

Multiple modports can now be specified as default modport targets using ..same() or ..converse().

interface InterfaceA {
    var a: u32;
    var b: u32;
    modport mp_a { a: input }
    modport mp_b { b: input }
    modport mp_ab {
        ..same(mp_a, mp_b)
    }
}

Copy imported functions from target modports of `same` default member #2326

When using ..same() to inherit from another modport, imported functions from the target modport are now automatically copied.

interface InterfaceA {
    var a: u32;
    modport mp_a {
        a: input,
        import get_a(),
    }
    modport mp_b {
        ..same(mp_a)   // get_a() is automatically copied
    }
}

Add positive integer types #2281

New integer types p8, p16, p32, and p64 are introduced, which restrict values to positive numbers only.

module ModuleA {
    const X: p32 = 10;
}

New Tool Features

Minimal support of Veryl native testbench #2338

Veryl now supports native testbench syntax. You can write testbenches directly in Veryl using $tb::clock_gen and $tb::reset_gen for clock and reset generation, and initial blocks for test scenarios.

#[test(test_counter)]
module test_counter {
    inst clk: $tb::clock_gen;
    inst rst: $tb::reset_gen;

    var cnt: logic<32>;

    inst dut: Counter (
        clk: clk,
        rst: rst,
        cnt: cnt,
    );

    initial {
        rst.assert(clk);
        clk.next  (10);
        $assert   (cnt == 32'd10);
        $finish   ();
    }
}

Note that the native simulator used for native tests may still contain bugs. Please use with caution. If you find any bugs, please report them via GitHub Issues.

Add `#[ignore]` attribute for `#[test]` #2418

Tests can now be marked with #[ignore] to skip them during test execution.

#[test(test_counter)]
#[ignore]
module test_counter {
}

Documentation test by WaveDrom #2363

WaveDrom timing diagrams in documentation comments can now be tested by using the wavedrom,test tag. This validates the WaveDrom JSON syntax at build time.

/// ```wavedrom,test
/// { "signal": [{ "name": "clk", "wave": "p..." }] }
/// ```
pub module ModuleA {}

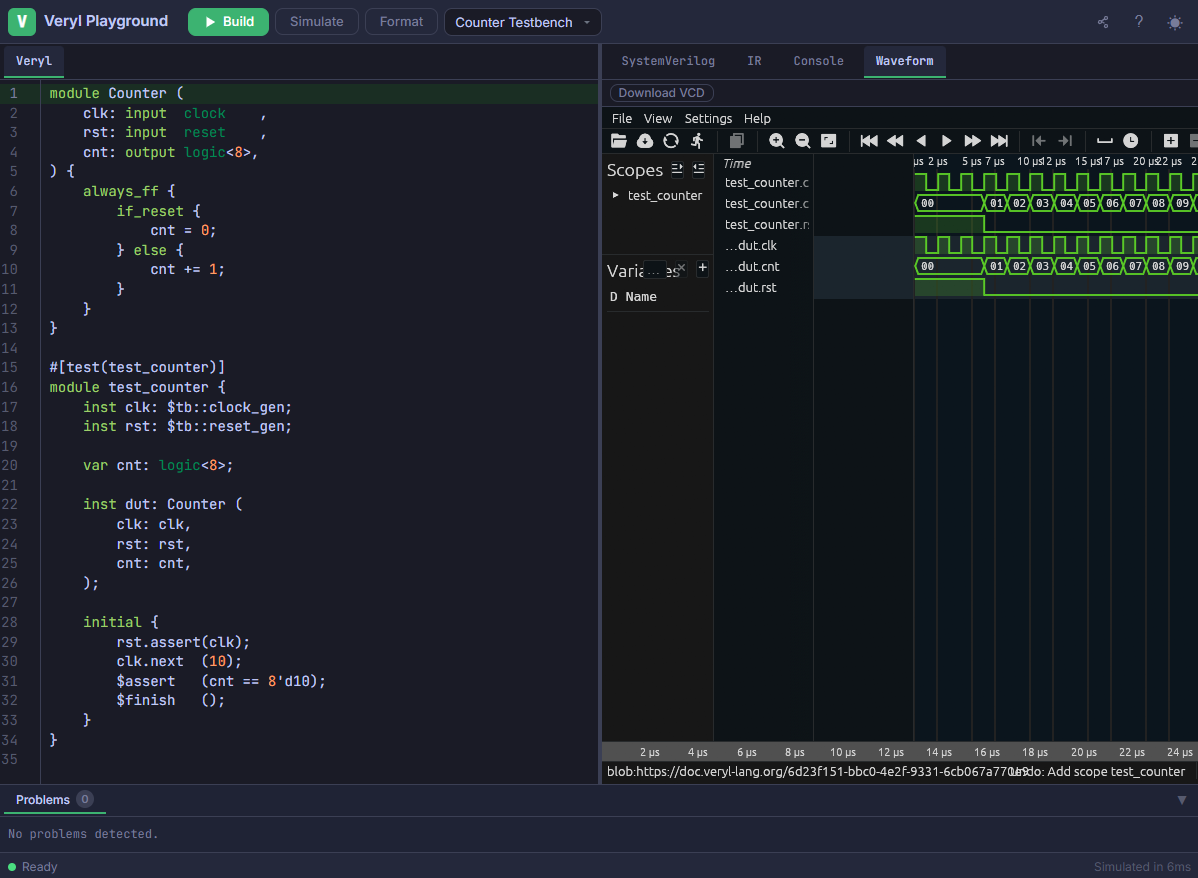

Playground improvements

The Veryl Playground has been redesigned with the following improvements:

UI overhaul with dark/light theme support
Auto-save of code to browser storage
Shareable link generation
Simulation with waveform viewer and VCD download

Other Changes

Check out everything that changed in Release v0.19.1.

New Language Features

Infer clock domain #2400
